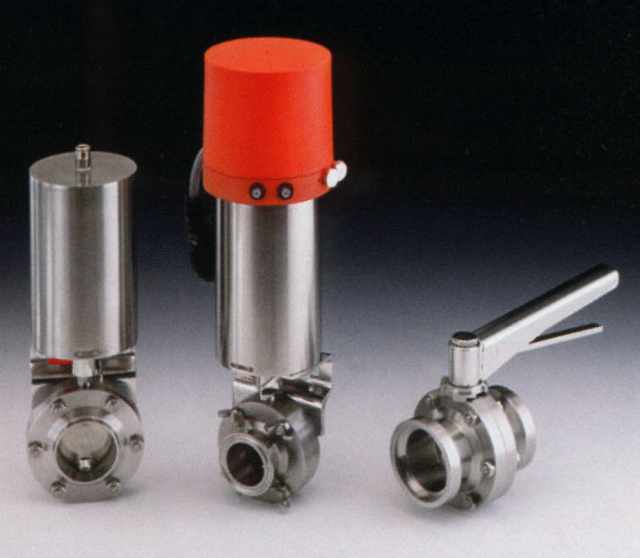

Butterfly Valves

VNE's Butterfly Valves are available in Manual, Air Actuated, or Air Actuated with two Micro switches and a Solenoid Valve. Clamp or Butt Weld ends are standard. Other connections are available upon request. Available seat materials include Silicone, VitonÆ, and EPDM.

Sizes range from 1" through 4". All product contact surfaces are available in either T304 or T316 stainless steel.

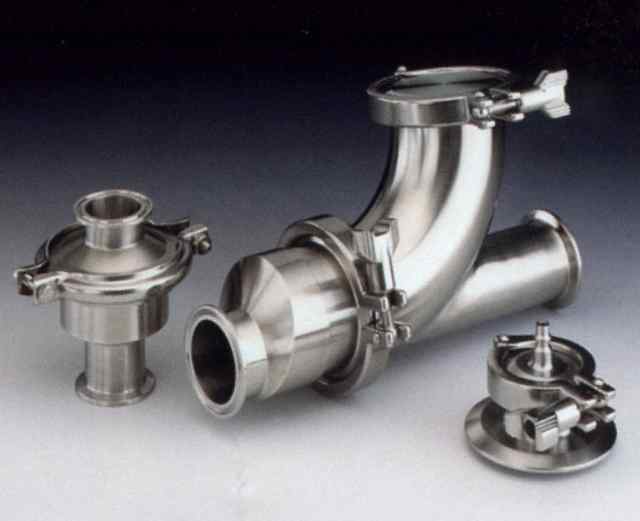

Check Valves

Check Valves are widely used for both sanitary and industrial applications to prevent backflow of product. VNE's Ball Check Valves are designed to allow full product flow during processing. Once the product flow stops the ball rolls back to the seat at inlet preventing back flow. Ball Check Valves are commonly used with liquid products. VNE's Spring Check Valves are designed to assist closure pressure to create a positive shutoff. They are also commonly used with liquid products. Both valves are offered with clamp and weld ends. Other connections are available upon request.

Sizes range from 1" through 3" in T316 stainless steel. VNE's Air Blow Check Valves are designed to evacuate lines of product or CIP solutions. Air Blow Check Valves are made of T316L Stainless Steel and are offered with EPDM or VitonÆ Elastomers. All of VNE's Check Valves meet 3A Sanitary requirements.

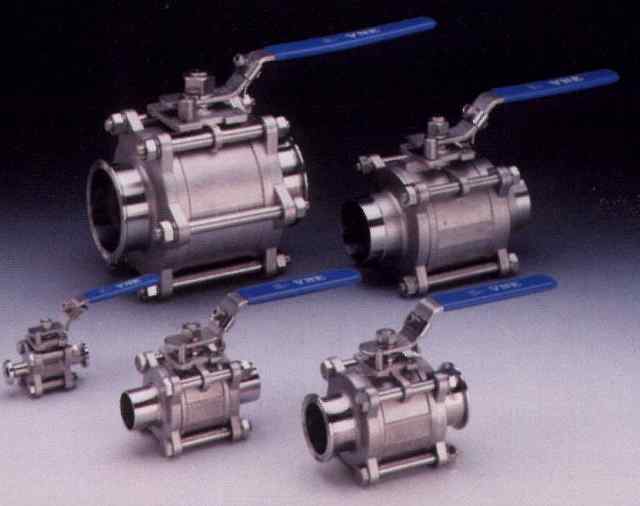

Ball Valves

Ball Valves are used in a wide variety of high pressure applications. Two factors make them popular. First, a full unrestricted flow that allows no product restrictions through the valve. Second, the three piece design and the removal of a minimal number of bolts allows service to be performed without removing the complete valve from the line. VNE offers two way ball valves made of T316 (CF8M) stainless steel. PTFE seats are easily removed.

Clamp and Butt Weld ends are standard. Other connections are available upon request. 1/2" through 4" sizes are available. VNE Ball Valves meet FDA and 3A requirements

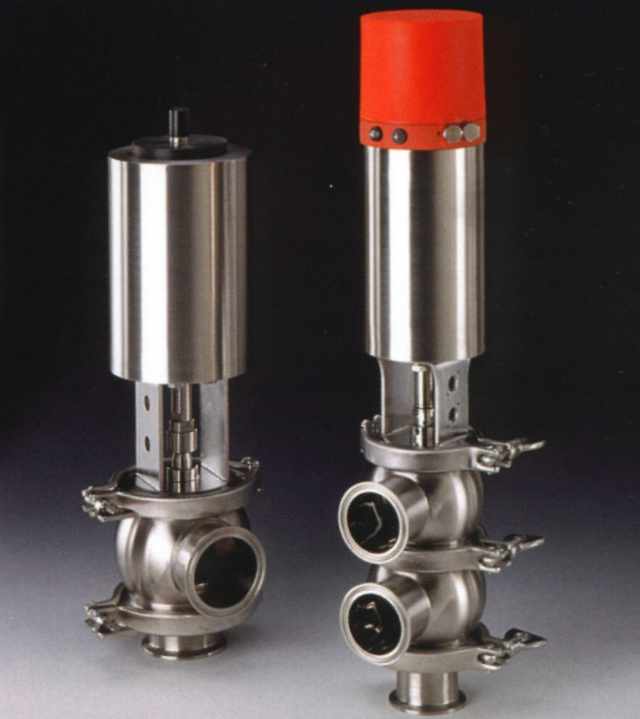

PVA Valves

PVA Valves are available in Manual, Air Actuated, or Air Actuated with an electronic control head. Configurations can be Shut off, Divert or Tank outlet. Connections consist of Clamp, Weld, Bevel Seat, and E-Line. VNE's PVA Valves are made of T316L stainless steel which meet all 3A requirements and are offered in 1/2" through 3" sizes.
